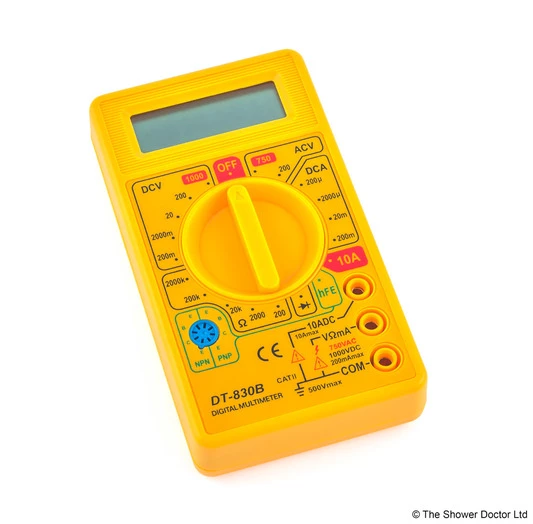

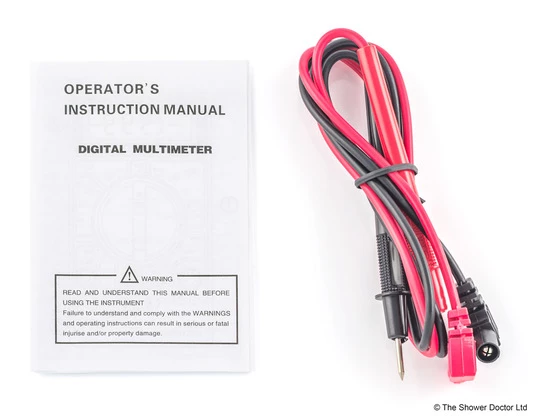

Digital multi-meter with LCD screen. Test leads and manual are included in the pack. For instructions on how to perform basic tests using the multi meter, go to the “Related Documents” section below and download the free digital multi meter PDF guide.

Digital Multi-meter

Dc Voltage: 0,2-2-20-1000V
Ac Voltage: 200-750V
Dc current: 0,2-2-2-20-200mA 10A
Resistance: 200 Ω – 2K-20K-200K-2000KΩ
Input Impedance: 1MΩ on all ranges
Dc current amplification: 0-1000
Battery: 9V
Size: 150mm x 70mm x 24mm
Weight: 150g including battery

Features:

• Compact size to carry around.
• 7 functions and 19 ranges to cover AC/DC
• Voltage resistance
• DC amps, battery, diode and signal.
• Includes 9v battery.
• Includes heavy duty test leads



Tests:

• Decibel ratios.
• Diodes.
• Transistor.
• Continuity Tests.
• AC-V 0-200-750.
